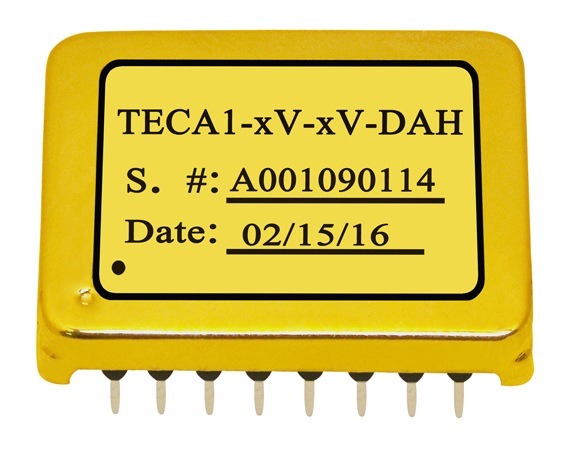

TECA1-xV-xV-DAH Series TEC Peltier ControllersGeothermal Heating & CoolingUpdated on Mar 12, 2018 View more like this | Visit SAN JOSE, CA | Contact Aimee Shi |
The TECA1-xV-xV-DAH is a Peltier Controller designed for driving TECs (Thermo-Electric Coolers) with high stability in regulating the object temperature, high energy efficiency, zero EMI, and small package.
This module provides interface ports for users to set the desired object temperature, i.e. set-point temperature; the maximum output voltage across TEC; and the compensation network. The compensation network compensates the high order thermal load and thus stabilizes the temperature control loop.
Voltage difference between TEMP and TEMPSP is −0.02mV ~ 0.5mV, ten times lower than that of TECA1-xV-xV-D,4~5mV.
High Efficiency: ≥90%
Maximum Output Current: 2.5A
Actual Object Temperature Monitoring
High Stability: 0.004°C
High Reliability and Zero EMI
Compact Size
100 % lead (Pb)-free and RoHS compliant
This module provides interface ports for users to set the desired object temperature, i.e. set-point temperature; the maximum output voltage across TEC; and the compensation network. The compensation network compensates the high order thermal load and thus stabilizes the temperature control loop.
Voltage difference between TEMP and TEMPSP is −0.02mV ~ 0.5mV, ten times lower than that of TECA1-xV-xV-D,4~5mV.
High Efficiency: ≥90%
Maximum Output Current: 2.5A
Actual Object Temperature Monitoring
High Stability: 0.004°C
High Reliability and Zero EMI
Compact Size
100 % lead (Pb)-free and RoHS compliant
