FEATURES
Wide Input Voltage Range: 5.5V~28V
Wide Output Voltage Range: 0.1VPS to 0.8VPS (input voltage)
High Current Capability: 10A
High Efficiency: ≥90%
(IOUT=4A@LDA=20V & VPS=28V)
Wide Modulation Bandwidth: DC～20kHZ
Dual Independent Current Set Ports: LISH and LISL
Direct Digital Modulation Control: PCN
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@4A &－20°C~80°C
Low Output Ripple Voltage: < 6mV@700kHZ
Fully Shielded
Both DIP and SMT Packages Available
100 % Lead (Pb)-free and RoHS Compliant

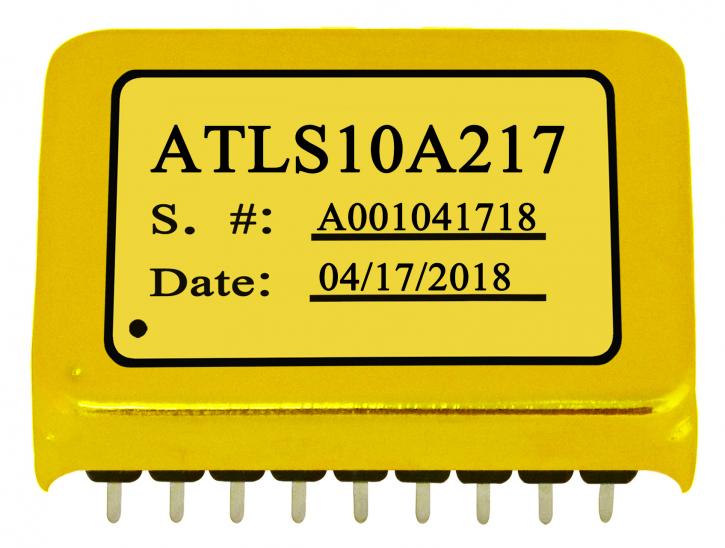

This laser driver, ATLS10A217D, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVpp ripple voltage at 700kHZ), wide modulation bandwidth, and small size.
Wide Input Voltage Range: 5.5V~28V
Wide Output Voltage Range: 0.1VPS to 0.8VPS (input voltage)
High Current Capability: 10A
High Efficiency: ≥90%
(IOUT=4A@LDA=20V & VPS=28V)
Wide Modulation Bandwidth: DC～20kHZ
Dual Independent Current Set Ports: LISH and LISL
Direct Digital Modulation Control: PCN
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@4A &－20°C~80°C
Low Output Ripple Voltage: < 6mV@700kHZ
Fully Shielded
Both DIP and SMT Packages Available
100 % Lead (Pb)-free and RoHS Compliant
This laser driver, ATLS10A217D, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVpp ripple voltage at 700kHZ), wide modulation bandwidth, and small size.
