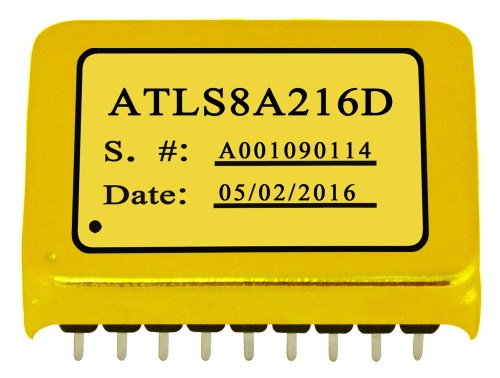

15V 8A Laser Driver ATLS8A216ElectronicsUpdated on May 21, 2018 View more like this | Visit SAN JOSE, CA | Contact Analog Technologies,Inc |
FEATURES
Power Supply Voltage VPS Range: 5.5V~15V
Full Swing Output Voltage: 0.8V to 0.8VPS (input voltage)
Maximum Output Current: 8A
High Efficiency: ≥90%
(IOUT=10A@LDA=10V & VPS=15V)
Wide Modulation Bandwidth: DC～20kHZ
Dual Independent Current Set Ports
Direct Digital Modulation Control
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@10A &－20°C~80°C
Low Output Ripple Voltage: < 6mV@700kHZ
Fully Shielded
Both DIP and SMT Packages Available
Compact Size: 27.4×21×5.7 (mm)
100 % Lead (Pb)-free and RoHS Compliant
