Used Computed Radiography for Sale VERT X

Used Computed Radiography for Sale VERT X $13,500

VERTX MIL-A

Choice of the US Military, the VERTX MIL-A is a complete deployable
CR radiography system featuring the VERTX CR imaging reader by
iCRco. The VERTX features a patented design incorporating True Flat
Scan PathTM ensuring the phosphor plates never leaves the cassettes.

This avoids any plate handling, damage or wear during the scan
process. The VERTX Scanner can be used as a freestanding CR
scanner or mounted to MinXray's HF120/60HPPWV PowerPlusTM/XGS
MKIV LW portable x-ray system. The VERTX MIL-A system also

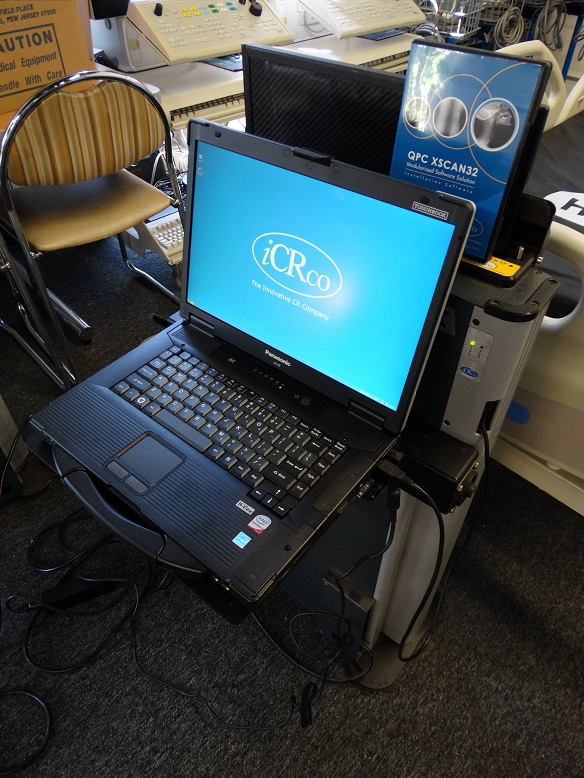

includes 2 ruggedized laptops and a medical grade 2MP monitor
packed in three Hardigg military transport cases.

True Flat Scan PathTM
One moving part
300,000 images per plate
Superior image processing software by iCRco
Made in USA



We have several VERT X digital computed radiography systems
ready for immediate sale and pick up or shipping
858-263-4894 [email protected]

Introducing the VertX – a robust solution for all medical imaging environments. Efficient and durable, the VertX is the chosen CR unit for the United States Military. This affordable scanner produces amazing image quality and is backed by powerful optics, sensors, and a solid-state, mechanical drive system. Portable or stand-alone, the VertX allows you to achieve amazing workflow at an affordable price.

Vert X digital x ray processor is an upgrade unit for GE AMX 4 portable x ray machine taking x ray slides and converting them into a digital format. X ray processor 55 lbs and can be attached to other analog portable x ray machines. More information 858-263-4894 [email protected] www.1usedmedicalequipment.com

VERT X Used Computed Radiography Specifications

Micron Spot Size Pixels Per mm Dots Per Inch (DPI) Line Pairs Per mm
200 5 127 2.5
155 5 163 3.1
100 10 254 5

* GENERAL SPECIFICATIONS

Grayscale Resolution

16 bits/pixel source file, 65536 shades of gray

Image access time 35 seconds

Plate Throughput

71 Plates Per Hour Mixed Cassette Sizes


Cassette Sizes

14" x 17" (35 x 43 cm)
10" x 12" (25 x 30 cm)


Configuration

Portable or smallest stationary CR


Weight

50 lbs (22 kg)


Dimensions

W21" x D8.15" x H35" (W112 x D31 x H59 cm)


Power source

100-240V AC/ 2.5A max
47-63Hz (Universal power supply)


iSupply

24V portable DC power supply available
270 scans on single charge


Heat generation

Standby 230W
Maximum 1610W


Operating conditions

Temperature: 0-40°C/32-105°F
Temperature change: 0.5°C/min
Humidity: 15%-95% RH
Magnetic fields: max 1260 μT(in conformance with EN 61000-4-8: level 3)
10 A/m
