What's Inside a High Voltage Power Supply Module?

Electronics

Updated on Jul 26, 2019

View more like this | Visit NEW YORK, NY | Contact ATI
Image for What's Inside a High Voltage Power Supply Module? with ID of: 3602426

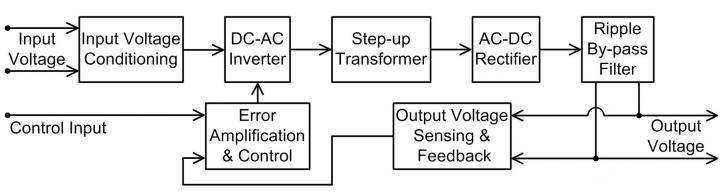

The major blocks needed for building a high voltage power supply module are: input power supply conditioning, DC-AC inverter, step-up transformer, AC-DC rectifier, Ripple by-pass filter, output voltage sensing and feedback, error amplification and control.
