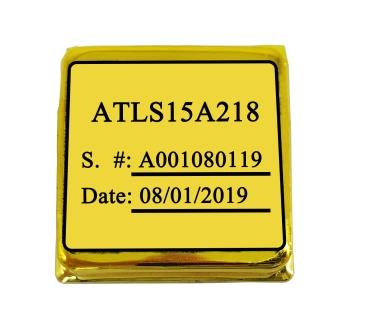

High Voltage Constant Current Laser Driver ATLS15A218ElectronicsUpdated on Feb 26, 2020 View more like this | Visit NEW YORK, NY | Contact Green Mary |
FEATURES
Wide Input Voltage Range: 5.5V ∼ 27V
Wide Output Voltage Range: 0.1VPS to 0.8VPS (input voltage)
High Current Capability: 15A
High Efficiency: ≥90%
(IOUT=15A@LDA=20V & VPS=27V)
Wide Modulation Bandwidth: DC～10kHZ
Dual Independent Current Set Ports: LISH and LISL
Direct Digital Modulation Control: PCN
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±20mA@15A &－20°C~80°C
Low Output Ripple Voltage: < 10mV@500kHZ
Fully Shielded
100 % Lead (Pb)-free and RoHS Compliant
