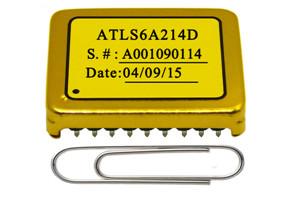

High Voltage Constant Current 6A Laser Driver ATLS6A214ElectronicsUpdated on Feb 19, 2020 View more like this | Visit NEW YORK, NY | Contact Green Mary |
FEATURES
Power Supply Voltage VPS Range: 5V～14V
Wide Output Voltage Range: 0.8V to 0.75VPS (input voltage)
Maximum Output Current: 6A
High Efficiency: ≥90% - no heat sink is needed
(IOUT=6A@LDA=10V & VPS=15V)
Wide Modulation Bandwidth: DC～10kHZ
Dual Independent Current Set Ports: LISH and LISL
Direct Digital Modulation Control: PCN
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@6A &－20°C~80°C
Low Output Ripple Voltage: < 4mV@500kHZ
Fully Shielded
Both DIP and SMT Packages Available
Compact Size: 27.4×21×5.7 (mm)
100 % Lead (Pb)-free and RoHS Compliant
