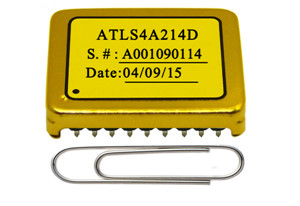

High Voltage Constant Current 4A Laser Driver ATLS4A214ElectronicsUpdated on Feb 19, 2020 View more like this | Visit NEW YORK, NY | Contact Green Mary |
FEATURES
Power Supply Voltage VPS Range: 5V～14V
Full Swing Output Voltage: 0.8V to 0.75 VVPS(input voltage)
Maximum Output Current: 4A
High Efficiency: 92% - no heat sink is needed(IOUT=4A@LDA=10V&VPS=15V)
Wide Modulation Bandwidth: DC～10kHZDual Independent Current Set Ports
Direct Digital Modulation Control
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@4A &－20°C~80°C
Low Output Ripple Voltage: < 4mV@500kHZ
Fully Shielded
Both DIP and SMT Packages Available
Compact Size: 27.4×21×5.7 (mm)
100 % Lead (Pb)-free and RoHS Compliant
