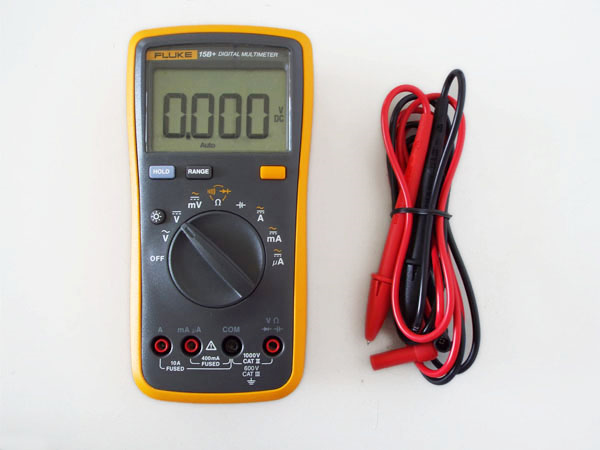

FLUKE Multimeter F15B+ElectronicsUpdated on Mar 15, 2020 View more like this | Visit NEW YORK, NY | Contact Green Mary |
General Specifications:
Maximum Voltage between any Terminal and Earth Ground: 1000 V
Display(LCD): 4000 counts, updates 3/sec
Battery Type: 2 AA,NEDA 15A, IEC LR6
Battery life: 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type of LED under test)
Temperature:
Operating: 0 deg to 40 deg
Storage: -30 deg to 60 deg
Relative Humidity:
Operating Humidity: Non-condensing≤90%at 10deg to 30deg; ≤75% at 30deg to 40deg Operating Humidity, 40MC Range: ≤80% at 10deg to 30deg; ≤70% at 30deg to 40deg Altitude:
Operating: 2000m
Storage: 12.000m
Temperature Coefficient: 0.1×(specified accuracy)/deg(<18deg or> 28deg)
Fuse protection for current inputs: 440 mA,1000 V Fast Fuse, Fluck specified part only. 11A,1000v Fast Fuse, Fluke specified part only. Size(H×W×L): 183×91×49.5(mm)
Weight: 455g
IP Rating: IP 40
Safety: IEC 61010-1, IEC61010-2-030 600V CAT Ⅲ, 1000V CATⅡ, Pollution Degree 2 Electromagnetic Environment: IEC 61326-1:Portable
Electromagnetic Compatibility: Applies to use in Korea only
Maximum Voltage between any Terminal and Earth Ground: 1000 V
Display(LCD): 4000 counts, updates 3/sec
Battery Type: 2 AA,NEDA 15A, IEC LR6
Battery life: 500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type of LED under test)
Temperature:
Operating: 0 deg to 40 deg
Storage: -30 deg to 60 deg
Relative Humidity:
Operating Humidity: Non-condensing≤90%at 10deg to 30deg; ≤75% at 30deg to 40deg Operating Humidity, 40MC Range: ≤80% at 10deg to 30deg; ≤70% at 30deg to 40deg Altitude:
Operating: 2000m
Storage: 12.000m
Temperature Coefficient: 0.1×(specified accuracy)/deg(<18deg or> 28deg)
Fuse protection for current inputs: 440 mA,1000 V Fast Fuse, Fluck specified part only. 11A,1000v Fast Fuse, Fluke specified part only. Size(H×W×L): 183×91×49.5(mm)
Weight: 455g
IP Rating: IP 40
Safety: IEC 61010-1, IEC61010-2-030 600V CAT Ⅲ, 1000V CATⅡ, Pollution Degree 2 Electromagnetic Environment: IEC 61326-1:Portable
Electromagnetic Compatibility: Applies to use in Korea only
