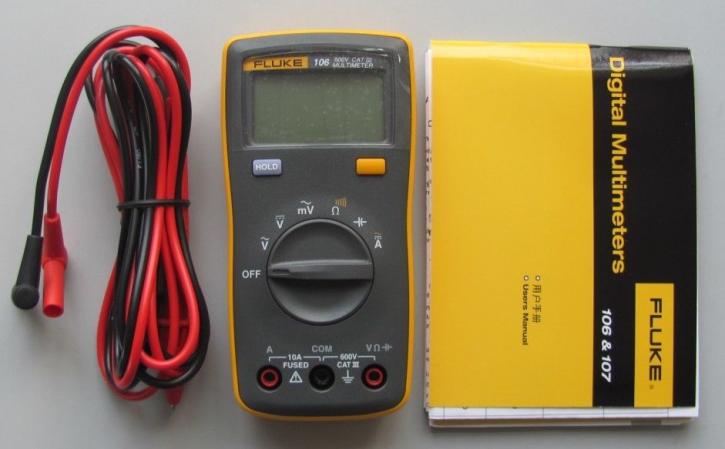

FLUKE Digital Multimeter F106ElectronicsUpdated on Mar 16, 2020 View more like this | Visit NEW YORK, NY | Contact Green Mary |
General Specifications:
Maximum Voltage Between any Terminal and Earth Ground: 600 V
Display (LCD): 6000 counts, updates 3/sec
Battery Type: 2 AAA, NEDA 24A, IEC LR03
Battery Life: 200 hours minimum
Temperature Operating: 0 °C to 40 °C
Temperature Storage: -30 °C to 60 °C
Operating Humidity: Non-condensing when <10°C≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range: ≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Operating: 2000 m
Storage: 12,000 m
Temperature Coefficient: 0.1 X (specified accuracy) /°C (<18 °c or>28 °C)
Fuse Protection for Current Inputs: 11A, 1000V Fast Fuse, Fluke specified part only
Size (HxWxL): 142 mm x 69 mm x 28mm
Weight: 200 g
IP Rating: IEC 60529: IP 40
Safety: IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment:IEC 61326-1: Portable
Electromagnetic Compatibility: Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1
