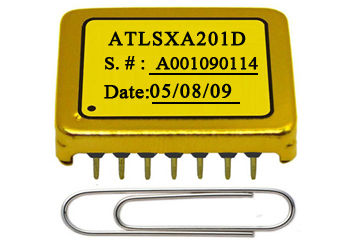

Constant Current Laser Driver ATLSxA201DElectronicsUpdated on Jun 1, 2018 View more like this | Visit NEW YORK, NY | Contact ATI |
APPLICATIONS
The ATLSXA201D series diode laser drivers are the upgraded drop-in replacements for our CWD-01-V2 laser drivers, except starting up time is shorter: 4mS as opposed to 100mS in CWD-01-V2. These diode laser drivers are designed for driving laser diodes with low noise constant current at high efficiency.
The "XA" in the part number specifies the maximum output current of the modules, which can be: 500mA, 1A, 2A, 3A, 4A and 6A respectively and the maximum output voltage is up to 2.7V when powered by a 3.3V power supply and 4.2V by a 5V power supply.
MAIN FEATURES
High Efficiency: ≥90%
Maximum Output Current: 500mA, 1A, 2A, 3A, 4A, 6A
Current Output Noise: 0.05%
High Stability: 100ppm/°C
High Reliability and Zero EMI
Compact Size
DIP Package Available
100 % lead (Pb)-free and RoHS compliant
The ATLSXA201D series diode laser drivers are the upgraded drop-in replacements for our CWD-01-V2 laser drivers, except starting up time is shorter: 4mS as opposed to 100mS in CWD-01-V2. These diode laser drivers are designed for driving laser diodes with low noise constant current at high efficiency.
The "XA" in the part number specifies the maximum output current of the modules, which can be: 500mA, 1A, 2A, 3A, 4A and 6A respectively and the maximum output voltage is up to 2.7V when powered by a 3.3V power supply and 4.2V by a 5V power supply.
MAIN FEATURES
High Efficiency: ≥90%
Maximum Output Current: 500mA, 1A, 2A, 3A, 4A, 6A
Current Output Noise: 0.05%
High Stability: 100ppm/°C
High Reliability and Zero EMI
Compact Size
DIP Package Available
100 % lead (Pb)-free and RoHS compliant
