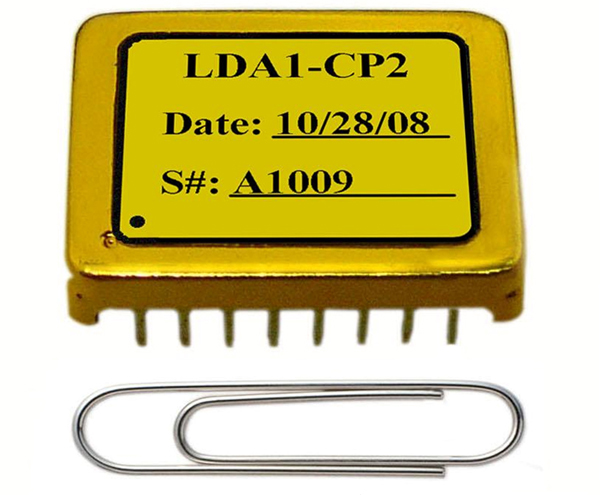

Constant Current and Constant Power Laser Driver LDA1-CP2

DESCRIPTION:
The LDA1-CP2 is an electronic module designed for driving N type (PD cathode and LD anode are connected to the laser diode can) diode lasers with well controlled and monitored driving current and output laser power. This laser driver has a PWM (Pulse Width Modulation) output stage, and achieves >90% high power efficiency, eliminating the need for a heat sink. The output current and laser power can be set linearly by two separate input voltages and monitored linearly at the same time by two output voltages respectively. This laser controller comes with a high stability low noise 2.5V reference voltage which can be used to set the output current and as voltage references for external ADCs and DACs. It is of 100 % lead (Pb)-free and RoHS compliant.
FEATURES
High Efficiency: ≥90%
Maximum Output Current: 2A
No Heat Sink Required
Capabilities: <10mV@500KHz
Current Output Noise: 0.05%
Both DIP and SMT Packages Available
Zero EMI
Compact Size
100 % Lead (Pb)-free and RoHS Compliant

APPLICATIONS
DPSSL, EDFA, and instrumentation diode lasers.
