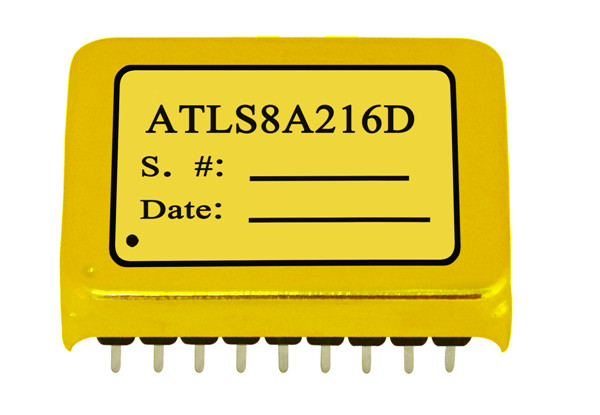

15V 8A Laser Driver ATLS8A216

DESCRIPTION:
This laser driver, ATLS8A216, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVpp ripple voltage at 500kHZ), wide modulation bandwidth, and small size.
FEATURES
Power Supply Voltage VPS Range: 5.5V~15V
Full Swing Output Voltage: 0.8V to 0.8VPS (input voltage)
Maximum Output Current: 8A
High Efficiency: ≥90%
(IOUT=10A@LDA=10V & VPS=15V)
Wide Modulation Bandwidth: DC～20kHZ
Dual Independent Current Set Ports
Direct Digital Modulation Control
Three Control States: Shutdown, Standby and Operation
Very Low Output Current Noise: < 12μ[email protected]~10Hz
High Current Stability: < ±600μA@10A &－20°C~80°C
Low Output Ripple Voltage: < 6mV@700kHZ
Fully Shielded
Both DIP and SMT Packages Available
Compact Size: 27.4×21×5.7 (mm)
100 % Lead (Pb)-free and RoHS Compliant
