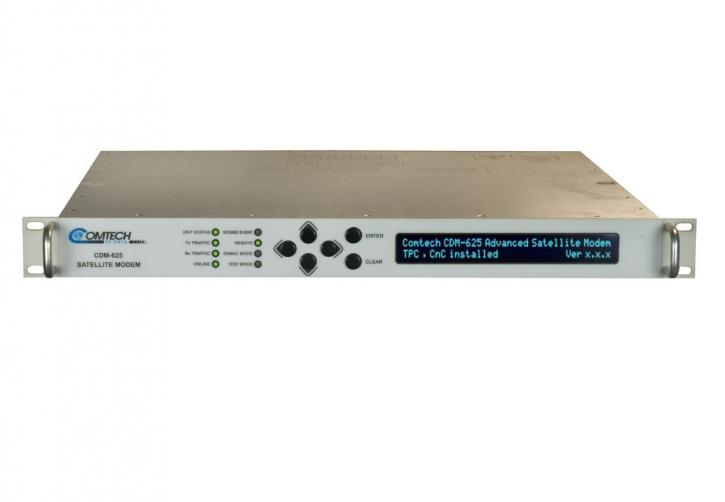

Comtech 625 Advanced Satellite ModemSatellite Radio Equipment & SystemsUpdated on Jun 12, 2015 View more like this | Visit MIAMI, FL | Contact Satcom Solutions Corporation |
The Advanced Satellite Modem Comtech 625 A forms a legacy by providing the world’s most efficient modems of satellite. With the support for Versa Forward Error Correction (VersaFEC), the revolutionary bandwidth compression called DoubleTalk Carrier-in-Carrier, the advanced processing packet and additional roll-offs, CMD-625A under all conditions can provide the significant savings. The combination of the most advanced technologies enabled the multi-dimensional optimization, allowing the users of satellite communication to do the following:
-Minimizing the operating expenses / OPEX
-Maximizing the throughout without using extra transponder resources
-Maximizing the margin or availability without using extra transponder resources
-Minimizing the capital expenses / CAPEX by allowing the smaller HPA/BUC or/and antenna
-Combination of those to meet the specific needs of the businesses
Some of the features include the bandwidth compression DoubleTalk Carrier-in-Carrier and Automatic Power Control Carrier-in-Carrier.
The DoubleTalk Carrier-in-Carrier
The DoubleTalk Carrier-in-Carrier, based on the patented technology, “Adaptive Cancellation”, allows receive and transmit carrier of duplex link to share similar transponder bandwidth. The DoubleTalk Carrier-in-Carrier matches all the advances of modern technology that includes the modulation techniques and advanced FEC. As these kind of technologies approach the bandwidth efficiencies and theoretical power limits, the DoubleTalk Carrier-in-Carrier uses an advance signal processing technique that can provide a new dimension for bandwidth efficiency.
As the DoubleTalk Carrier-in-Carrier allows an equivalent efficiency spectral by using a lower modulation order or/and code rate, it can possibly reduce the required power in order to close the link and also reduce the CAPEX to allow the smaller HPA/BUC or/and antenna. The DoubleTalk Carrier-in-Carrier can be used alternatively in order to achieve a very high efficiency spectral. As for example, When DoubleTalk Carrier-in-Carrier is used with 16-QAM, it will approach the bandwidth efficiency of 8 bps/Hz or 256-QAM.
When DoubleTalk Carrier-in-Carrier is combined with TPC/LDPC or VersaFEC, it can give you an unprecedented saving in the power utilization and transponder bandwidth. This allows a successful deployment in power-limited and bandwidth-limited scenarios, as well as the reduction in HPA/BUC power requirements.
Automatic Power Control Carrier-in-Carrier (APC-CNC)
The patent pending Automatic Power Control Carrier-in-Carrier (APC-CNC) mechanism can enable both sides of CNC link modems to automatically compensate and measure rain fade and maintain the TCP (Total Composite Power). In addition to that, APC-CNC also allows the modems to share the link margin. For example, a modem in a very clear condition of sky can transfer effectively the excess margin link to a very distant end modem that is experiencing the fade. In this way, the overall availability of APC-CNC is greatly enhanced.
The Dual Band Capability
The CDM-625A supports the 70/140 MHz and 950 to 2250 MHz extended L-band capability in similar unit with an independently selectable receive and transmit IF. This simplifies the stocking and sparing of networks that requires L-band and 70/140 MHz units.
The Packet Processor
The high performance optional Packet Processor can enable an efficient networking of IP and a satellite transport over with a very low header compression, overhead encapsulation, advance service quality and payload compression to CDM-635A. The QOS combined with the payload and header compression ensure the best quality of service with a minimal latency and jitter for a real time traffic, maximum efficiency of bandwidth and priority treatment of critical missions applications.
Frill
To upgrade the usefulness of our Satellite Modems, we offer an assortment of items, including 1:1 and M:N excess switches, interface converters, IP-empowered screen & control interfaces, and that's only the tip of the iceberg.
Satcom Solutions Corporation and Comtech
Satcoms Solutions Corporation is a trusted tried and true expert of distribution of Comtech Satellite Modems. Being a leader in South Africa and one of the largest distributors in the world it is easy to see why Satcoms Solutions Corporations has led the way in developing markets in foreign and native countries.
ENGINEERING EXPERIENCE
More than 200 man-years experience in the specialized field of satellite communications.
For additional information contact Satcom Solutions Corporation SSC at +1 818-991-9794 or by Email: [email protected]
31119 Via Colinas Sute 501, Westlake Village, CA 91362
Visit us on the web @ Satcoms.com
