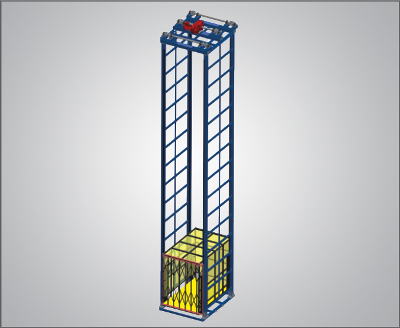

Vertical Reciprocating Conveyer

Series Four Post vertical reciprocating conveyor (VRC) designs offer maximum capacity and rigid for post design for heavy load application.

• VRC heavy bulky oversized load.


• Transfer multiple pallet loads, large carts, oversized paper loads and heavy machineries between one and multi floors.


• Offers maximum flexibility and carriage size, capacity and haulage traffic patterns.


• Loading and unloading can be done from all four sides.


• Engineered to meet your exact application requirement.


• Carriage lifting & lowering is controlled by heavy roller chain & sprocket attached to lifting mechanism.


• Heavy duty construction with four corner support provides superior strength, reliability and long term performance.

Do Enquiry before buying: http://technovisionengrs.com/contact.php

General:
Widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing structure.

Product Range:
Series Four Post vertical reciprocating conveyor is available with lifting capacity up to 2500kgs-5000Kgs, carriage size is customized, travel height 30.0Mtrs.

Structure:
Modular design with MS tubular structure with vertical 'H' beams. Carriage is MS fabricated tubular structure with checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating sides are provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered with MS perforated sheet optionally.

Operation:
Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the help of Chain & sprockets mechanism.

Safety:

• 2 Nos. of spring loaded Safety cams are provided to arrest sudden fall of the carriage due to failure of lifting chains.


• Deck locks are provided for additionally safety at critical upper level


• Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level floor limit switch .


• Chain Tensioner Limit Switch provided to stop the carriage in case of the lifting chains are pulled out due to any external obstruction in the upward / downward movement of the carriage .


• Top safety counter weight limit switch provided to cut-off the main power supply in case the carriage does not stop due to the failure of top floor level limit switch.


• Landing station collapsible doors are interlocked with electro-mechanical limit switches.


• Common contactor is provided to cut-off the main power supply if the up/down contactor is failed.

Browse the full Detail: http://technovisionengrs.com/four-post-vrc.php

Application Data:

• Please specify the technical details as under;



  • UDL Capacity, Kgs: Please specify Load carrying capacity.


  • Carriage Size, mm: Width x Depth x Height


  • Vertical Travel, mm:


  • Number of Stops: G + 1/ G + 2 / G + 3 etc.





Location:
Please specify the location for installation.
