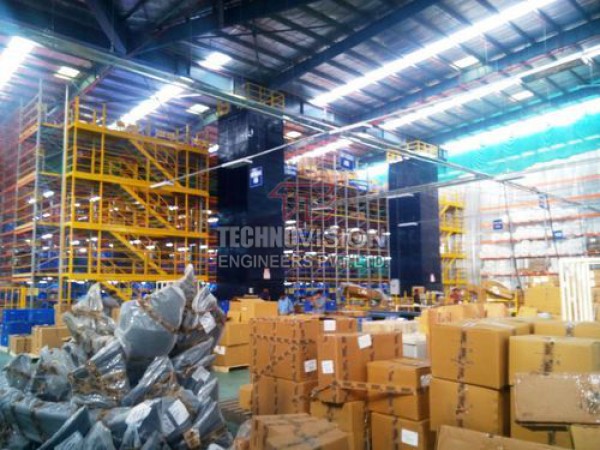

Multi Tier Lifts

Technovision Engineers Pvt. Ltd. Manufacturer & Supplier of a wide range of products which include Vertical Reciprocating Conveyor such as Two Post VRC, Four Post VRC, Cantilever VRC, Industrial Lifts, Good lift, Material Lift, Multi Tier Lifts, mezzanine goods lift

Series 'Four Post ' VRC (Multi Tier Lifts)  designs offer maximum capacity and rigid for post design for heavy load application.

• VRC heavy bulky oversized load.


• Transfer multiple pallet loads, large carts, oversized paper loads and heavy machineries between one and multi floors.


• Offers maximum flexibility and carriage size, capacity and haulage traffic patterns.


• Loading and unloading can be done from all four sides.


• Engineered to meet your exact application requirement.


• Carriage lifting & lowering is controlled by heavy roller chain & sprocket attached to lifting mechanism.


• Heavy duty construction with four corner support provides superior strength, reliability and long term performance.

General:
Widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing structure.

Product Range:
Series 'Four Post' VRC is available with lifting capacity up to 2500kgs-5000Kgs, carriage size is customized, travel height 30.0Mtrs.

Structure:
Modular design with MS tubular structure with vertical 'H' beams. Carriage is MS fabricated tubular structure with checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating sides are provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered with MS perforated sheet optionally.

Operation:
Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the help of Chain & sprockets mechanism.
