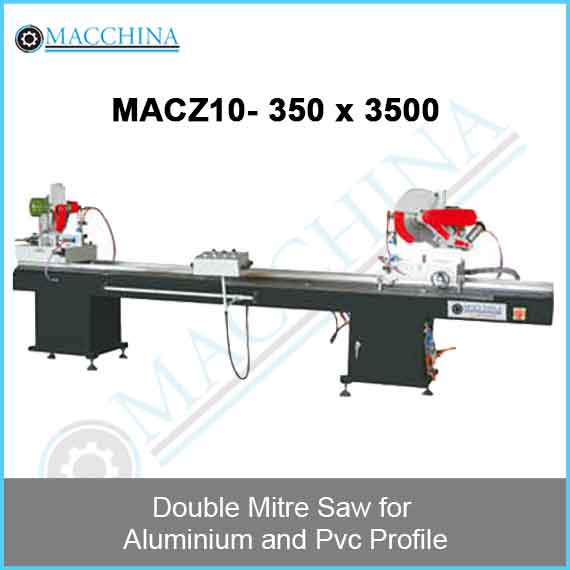

Double Mitre Saw Machine for Aluminium and uPVC Profile

This machine is used for processing the UPVC profiles at angles of -45º ~90º ~45º the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.

Technical Parameter
Model number: MACZ10-350X3500
Working Air Pressure: 0.4~0.6 Mpa
Air consumption: 100L/min
Power supply: 380V 50Hz
Input power: 2×1.1kw
Blade rotational speed: 3200 r/min
Double cutting length: 450~3500mm
Cutting Height: ≤100mm
Cutting width: ≤200mm
Contour dimension: 4000×1120×1450mm
Machine weight（about） 620kg
