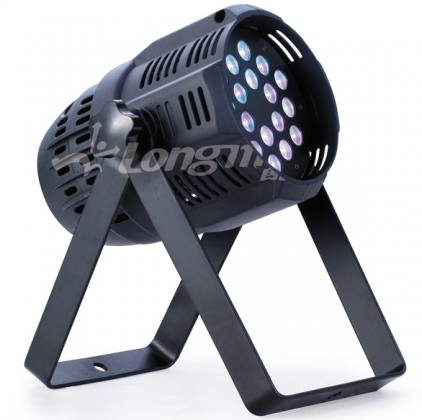

F 200 led par canStage Lighting EquipmentUpdated on Apr 15, 2016 View more like this | Visit CHINA, TX | Contact YOU-Q Culture Communication Co., Ltd |
Features:
1.Structure: New die cast model, made by high quality ADC12 aluminum, more stronger; Patent new lamp body is design to support heat sink, with better ventilation, no fans cooling, no noise! Temperature rises 25 degree in the full load; Could customize white/ Black housing.
2.Optic Design: Good color saturation and brightness, R=625nm 340lm, G=525nm 480lm, B=452nm 150lm, strict even color distribution, variegated aperture, white balance; Beam angle (10% intensity) 15 degree, 45 degree, Optional.
3.Electrical: AC 90~240V 47-63 Hz Input, 70 Watt max consumed, power factor 90%;
4.Control: DMX 6Channel as standard, Dimmer+RGB+Strobe+Macro; PWM driving, Frequency>3K Hz
5.More than 35000 Hours Longevity for SMPS and Main board.
Specification:
Voltage input AC 90-240V 47-63Hz
Max power consumption 70W
PF 0.9
Light source 18pcs*3W FULL RGB LED，R=625nm, G=525nm, B=450nm，good saturation
Light Output 2520 Lumens
LED Life Span 50 000 – 100 000 hours
Beam Angle 15°、25°、45°、60°、60*1°optional
Control signal DMX512
Control mode auto run/sound active/master slave/DMX
Channel 6CH
PWM Frequency >7.8KHz, flicker free
Cooling method Natural cooling
Net Weight 3.5Kg
Size 27*23*29CM
IP Rate IP 20
More about us : led stage lighting , wall washer
