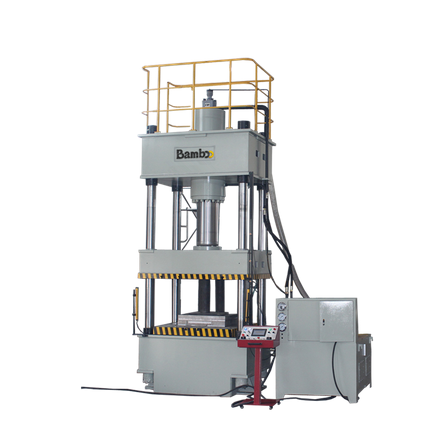

Deep Drawing Four Column Hydraulic Press Machine 315TonArcade Games & MachinesUpdated on Aug 20, 2018 View more like this | Visit CHINA, TX | Contact Bambeocnc Machinery Co.,Ltd |
1.Characteristics of Hydraulic Press 315Ton
Four Column structure enjoys outstanding rigidity. Each press is designed through Finite Element Structural Analysis and optimization to assure high strength and rigidity.
Adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan.)
Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance..
The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
Mitsubishi PLC +Touch Screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic.
Designed with adjustable drawing speed, the machine is applicable for various thickness metalworking and deep drawing.
The press fully meets CE safety requirements.
The slide has fast speed and high productive efficiency.
2. Security system of Hdyraulic Press 315ton
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,
The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.
Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface
Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.
3. Press Machine Applications:
Deep draw press is applied in production techniques, like deep drawing, stamping, cutting, bending, flanging of
metal sheet.
Particularly applied in the following industries:
1) Automobile Industry: steel ring, vehicle body, chasis, axle housing, fuel tank, door and many more.
2) Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, electric cooker etc.
3) Kitchen Ware Industry: stainless steel utensil, gas cylinder, stainless steel sink, cooking bench, etc.
4) Aluminum Cookware.
Optional Type
Moving Bolster / Die Change Trolley
Stamping Dampers for shock proof while stamping
Trolley / Moving Bolster for easy die change
Cushion Device for anti-shock while stamping
Water Cooler / Oil Chiller
Mould Hydraulic clamping
Air breathing design as per request
